– port-channel on Gigabit interface 0/0 and Gigabit 0/3
Configuration:
with LACP
– interface Gi0/0
(config)# interface gigabitEthernet 0/0
(config-if)# no shutdown
(config-if)# channel-group 1 mode active
– interface Gi0/3
(config)# interface gigabitEthernet 0/3
(config-if)# no shutdown
(config-if)# channel-group 1 mode active
– interface port-channel 1 configuration
in port-channel we can also configure subinterfaces like in normal interfaces,e.g.
(config)# interface port-channel 1.20
(config-subif)# vlan 333
(config-subif)# security-level 0
(config-subif)# nameif dmz1
(config-subif)# ip address 150.100.100.100 255.255.255.0
(config-subif)# no shutdown
(config)# interface port-channel 1.40
(config-subif)# vlan 334
(config-subif)# security-level 0
(config-subif)# nameif dmz2
(config-subif)# ip address 100.100.100.100 255.255.255.0
(config-subif)# no shutdown
Configure port-channel on switch where ASA is connected, config should looks like below:
interface GigabitEthernet1/0/1
switchport trunk encapsulation dot1q
switchport trunk allowed vlan 333,334
switchport mode trunk
channel-group 1 mode active
interface GigabitEthernet1/0/2
switchport trunk encapsulation dot1q
switchport trunk allowed vlan 333,334
switchport mode trunk
channel-group 1 mode active
Check port-channel:

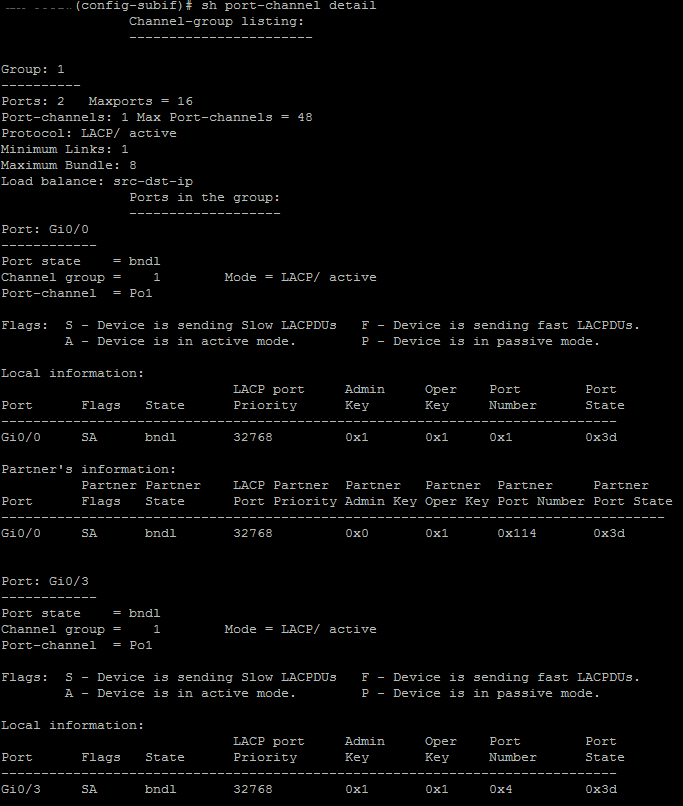

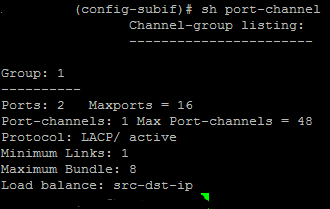

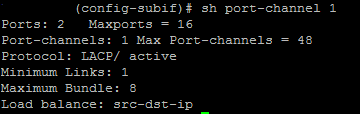

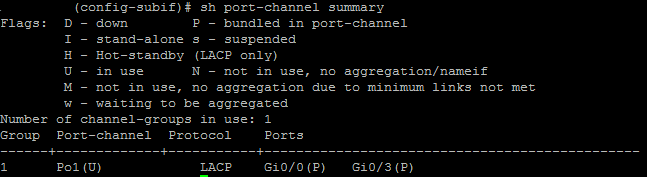

ASA:
dzbanek 2013-12-08
